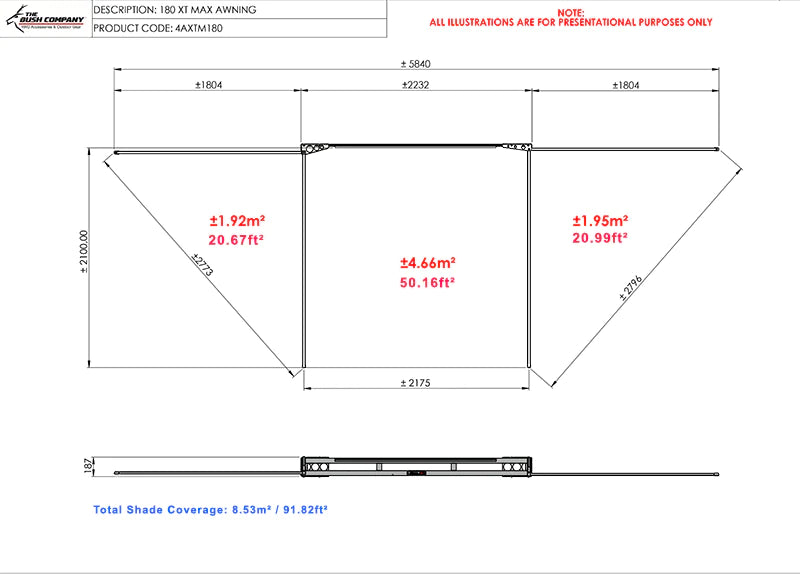

The 180 XT MAX™ Awning is the ultimate solution as a free standing shade awning in terms of massive shade coverage (8.53m² / 91.82ft²), wind resistance, and shares the same strength and durability as our famous 270 XT Awning and 270 XT MAX Awning.

The 180 XT MAX™ Awning is 90.5 inches long (2.3m) when packed up weighs only 57.3lbs (26Kg) and can be easily mounted to most roof racks or heavy duty load bars using our Heavy Duty L Brackets (included with the awning) or to our Roof Top Tents using the appropriate awning to tent bracket (sold separately).

Around the inside edge of the awning is a 50mm / 2″ thick triple stitched velcro strip which can be used to attach the optional awning walls (sold separately) enabling you to fully enclose the area to provide protection from the elements or additional privacy.

Fitting the 180 XT MAX™ Awning

The 180 XT MAX™ Awning frame requires a fitment bracket  attached to the stainless steel sections no more than 200mm / 7 ⁷/₈inch from each end.  The awning is not suitable to be fitted to a roof rack shorter than 1.9m / 74.8inches in length or to load bars where the width from front to rear is less than 1.9m / 74.8inches.  When using our Heavy Duty L Brackets (supplied with the awning) for mounting the 180 XT MAX™ awning, we recommend using one pair of the brackets, with one at each end.
